Vehicle Subsystem Kits

Programmable Vehicle Subsystem

ANCIT's Smart Subsystem Kits bring real vehicle intelligence to your workspace. Plug-and-play, ECU-simulated kits for OEMs, Tier-1s, universities, and R&D labs — develop, validate, and showcase automotive features without needing a vehicle.

Built on industry-standard protocols: CAN, LIN, UDS, and AUTOSAR

Request a Quote View Details

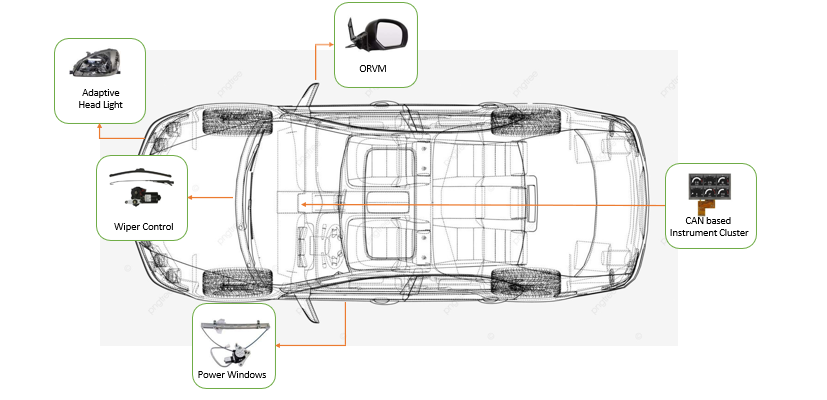

Included Subsystems

Advanced: Brake-by-Wire Steer-by-Wire ETB Subsystems: Instrument Cluster Wiper Control Power Windows ORVM Adaptive Headlights
Advanced Subsystems

Drive-by-Wire platforms requiring precision ECU control and closed-loop feedback

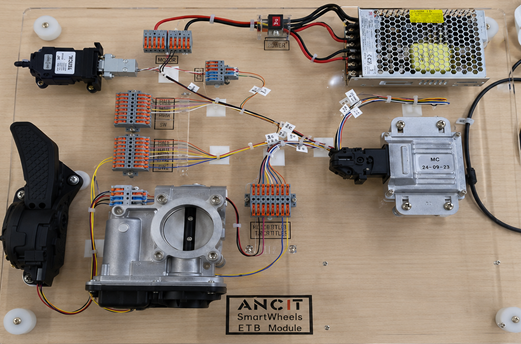

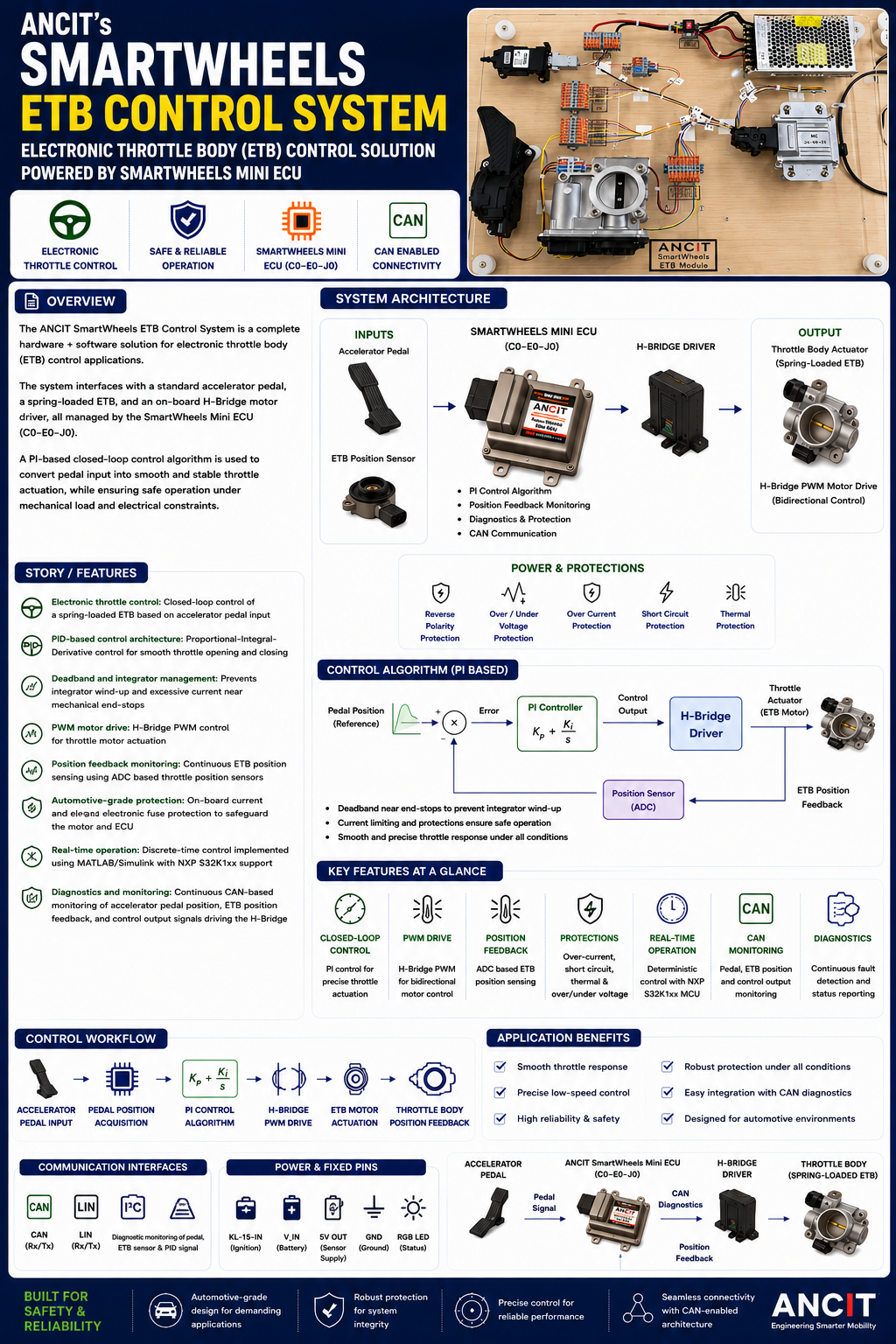

SmartWheels ETB Module
Electronic Throttle Body Module

An Electronic Throttle Body (ETB) control module for precision throttle management — ideal for powertrain and engine control development.

  • Real automotive throttle body with DC motor
  • Accelerator pedal position sensor (APPS) input
  • Throttle position feedback (TPS) sensing
  • Closed-loop PID control for precise positioning
  • CAN bus integration & SDV throttle commands

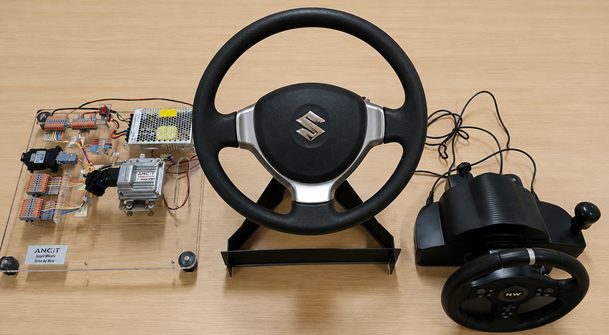

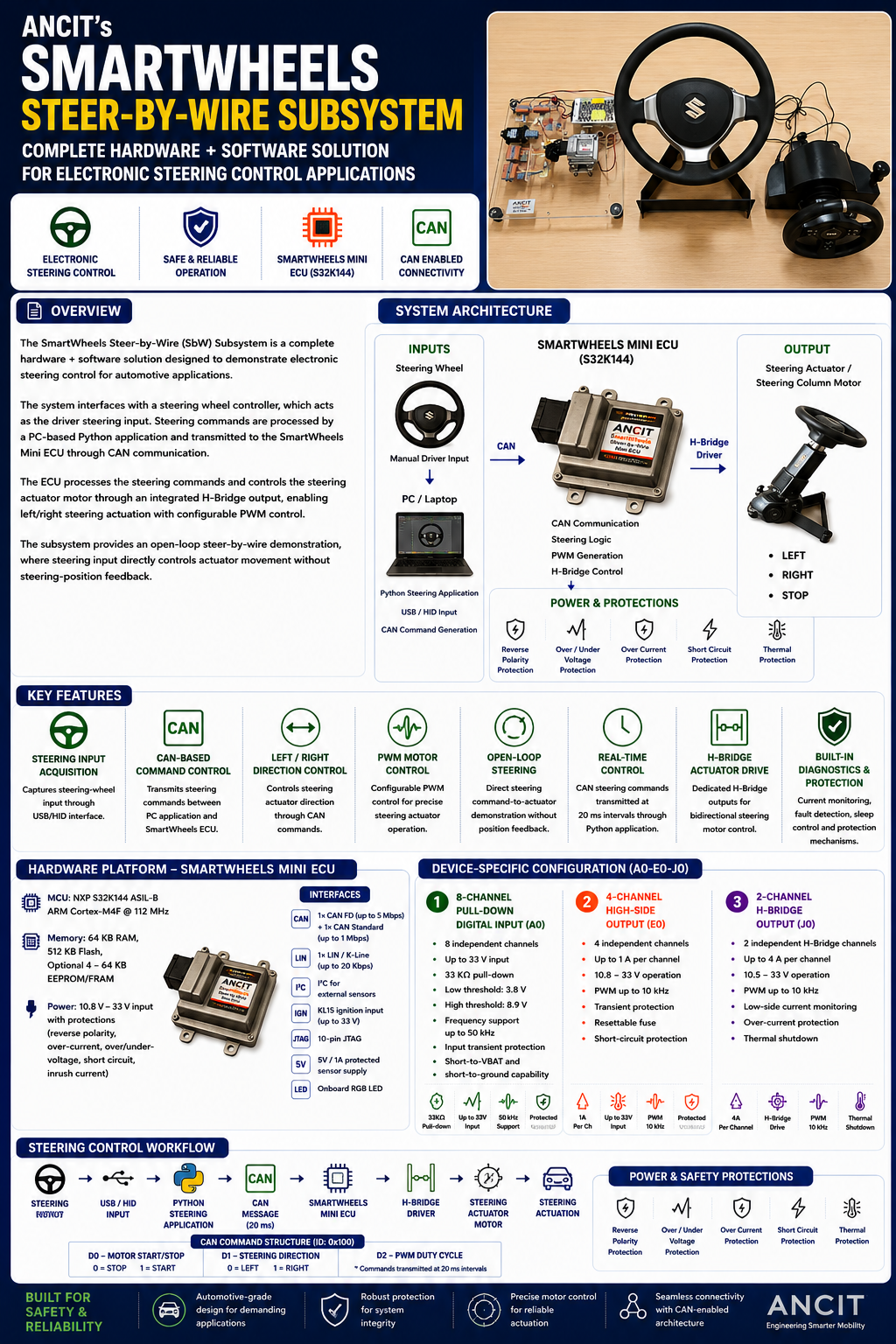

SmartWheels Steer-by-Wire System
Steer-by-Wire System

A hardware-in-the-loop steering platform with a real automotive steering wheel, enabling steer-by-wire algorithm development and validation.

  • Real automotive steering wheel interface
  • Steering angle & torque sensing
  • Road wheel actuator motor control
  • CAN bus integration & SDV commands
  • Compatible with ADAS & autonomous driving labs

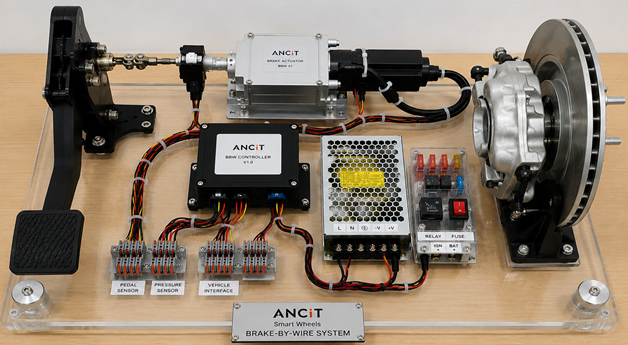

SmartWheels Brake-by-Wire System
Brake-by-Wire System

A complete electronic braking platform replacing mechanical linkages with precision ECU control — ideal for EV and ADAS development.

  • Pedal sensor & pressure sensor inputs
  • Brake actuator with motor control
  • Vehicle speed input for ABS simulation
  • CAN bus integration for SDV commands
  • BBW Controller V1.0 powered by SmartWheels ECU
Subsystems

Body control and comfort electronics powered by SmartWheels Mini ECU

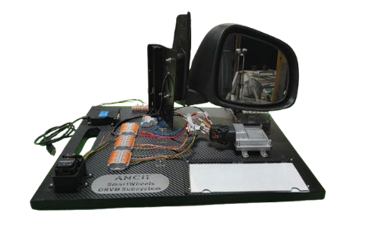

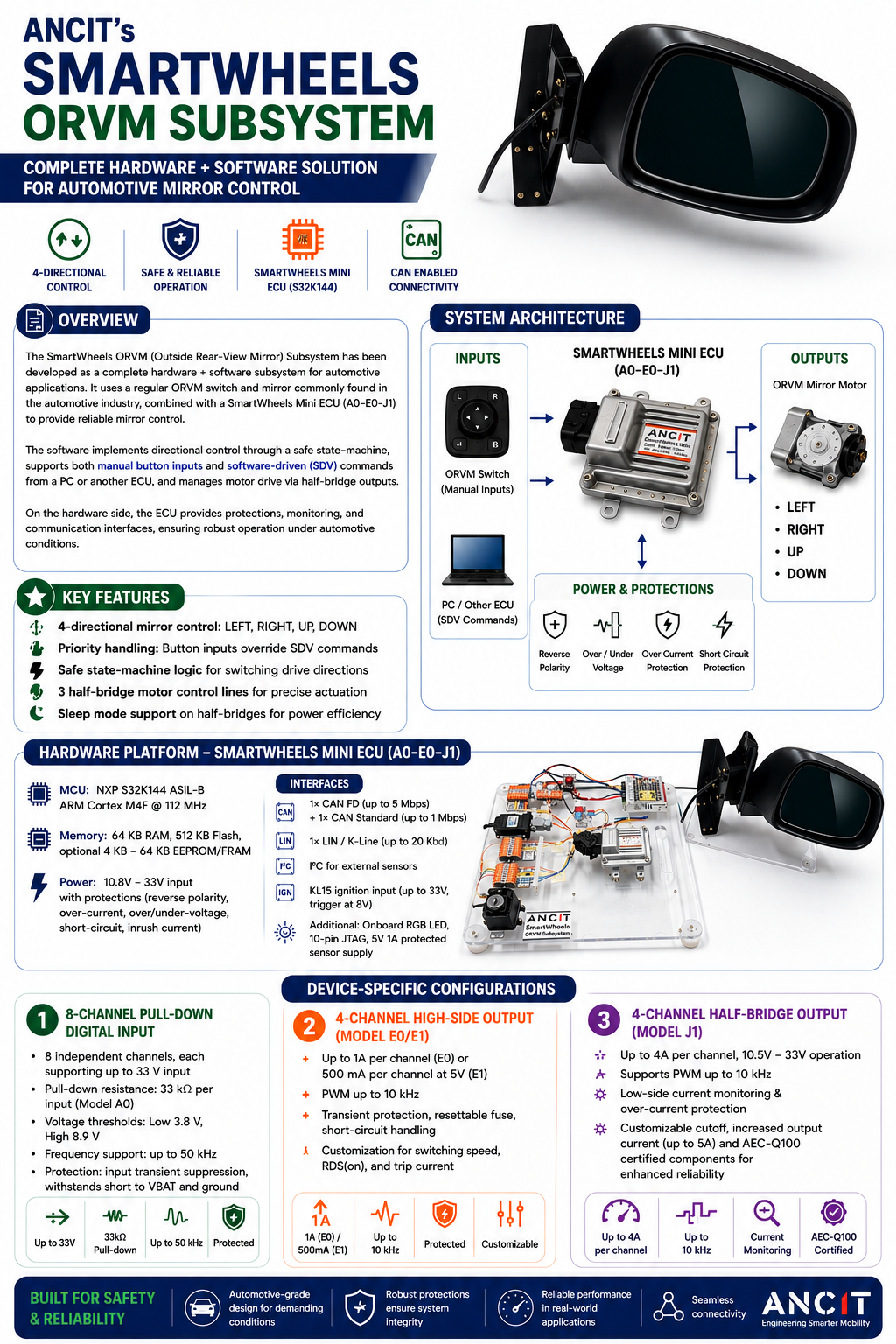

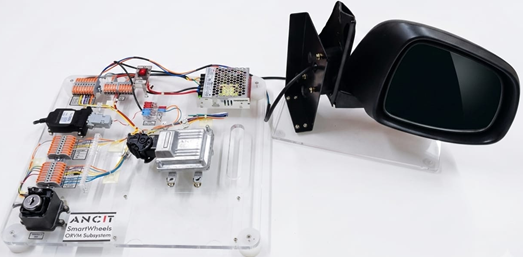

SmartWheels ORVM Subsystem
ORVM Subsystem

The SmartWheels ORVM (Outside Rear-View Mirror) Subsystem manages side mirrors with directional control.
Powered by ANCIT SmartWheels Mini ECU (A0-E0-J1)

  • 4-way control: Left, Right, Up, Down
  • Reads Left & Right mirror switch states
  • Publishes mirror states on CAN bus
  • Drives mirror motor via half-bridge drivers
  • SDV commands over CAN with button priority
  • Half-bridge sleep mode for power saving

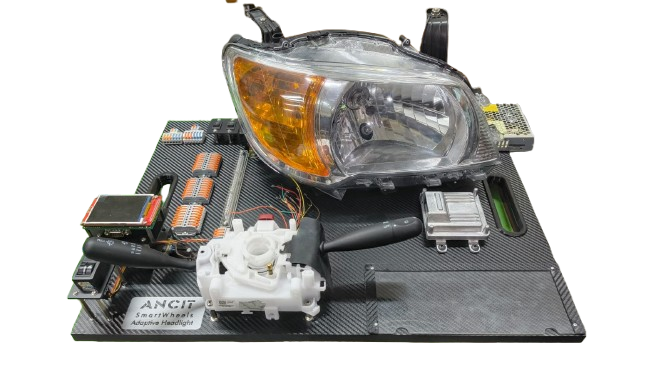

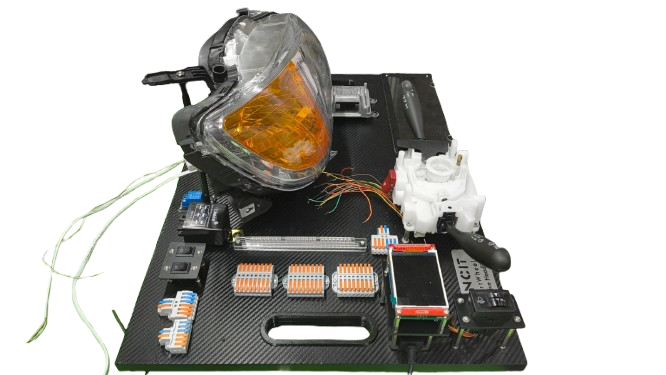

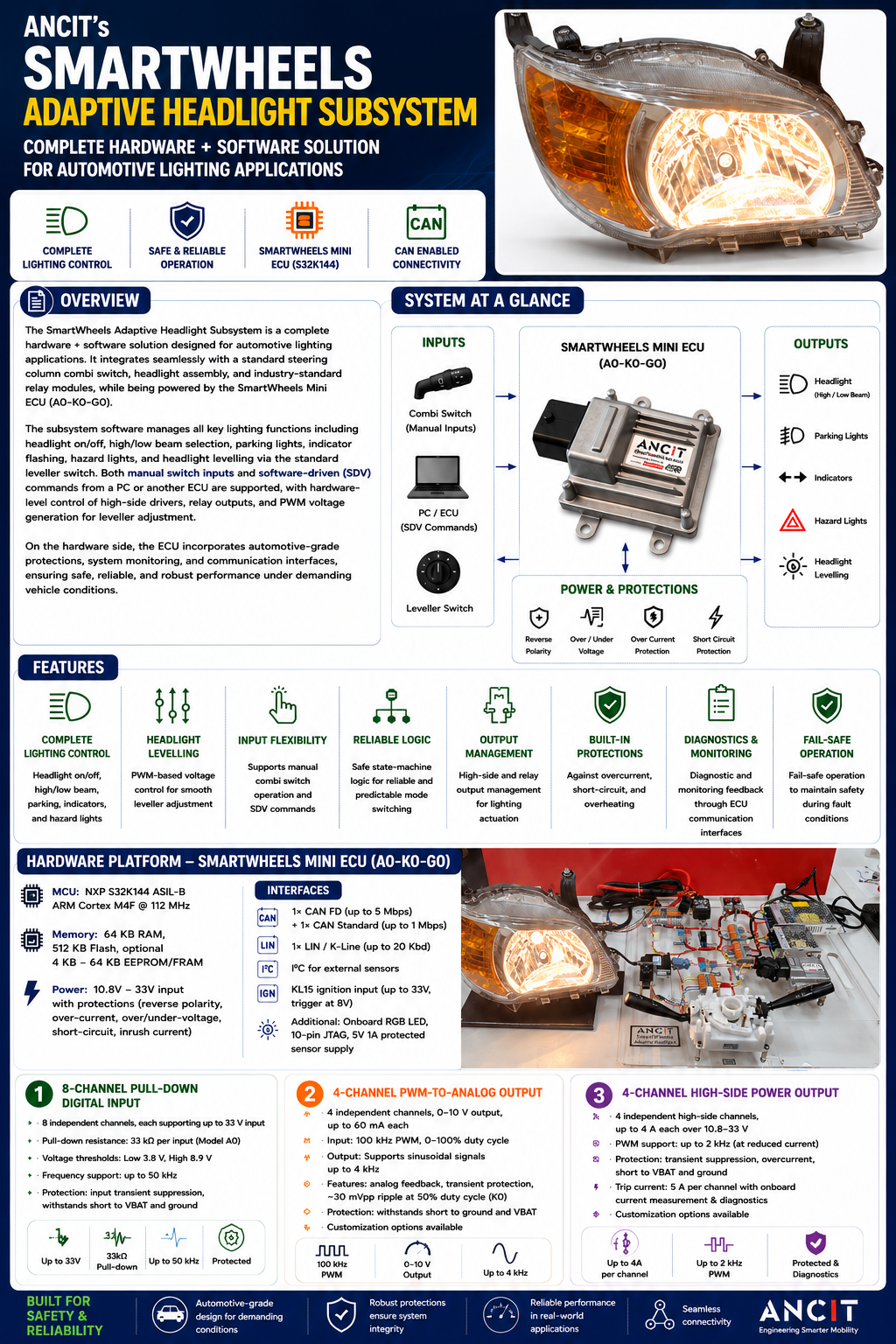

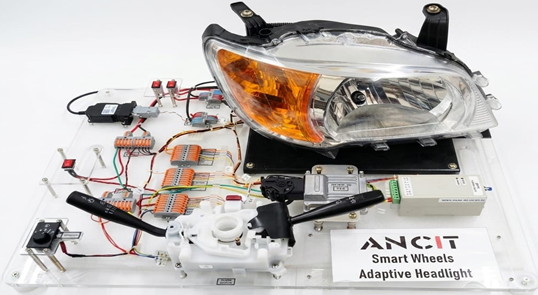

SmartWheels Adaptive Headlight
Adaptive Headlights

A complete hardware + software solution for automotive lighting.
Powered by ANCIT SmartWheels Mini ECU (A0-K0-G0)

  • Headlight on/off, high/low beam, parking
  • Indicators and hazard lights control
  • Headlight levelling via PWM voltage
  • Manual switch & SDV software commands
  • Automotive-grade protections built-in
  • Fail-safe design for safety under faults

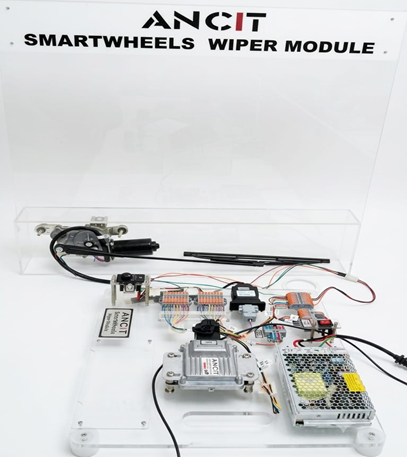

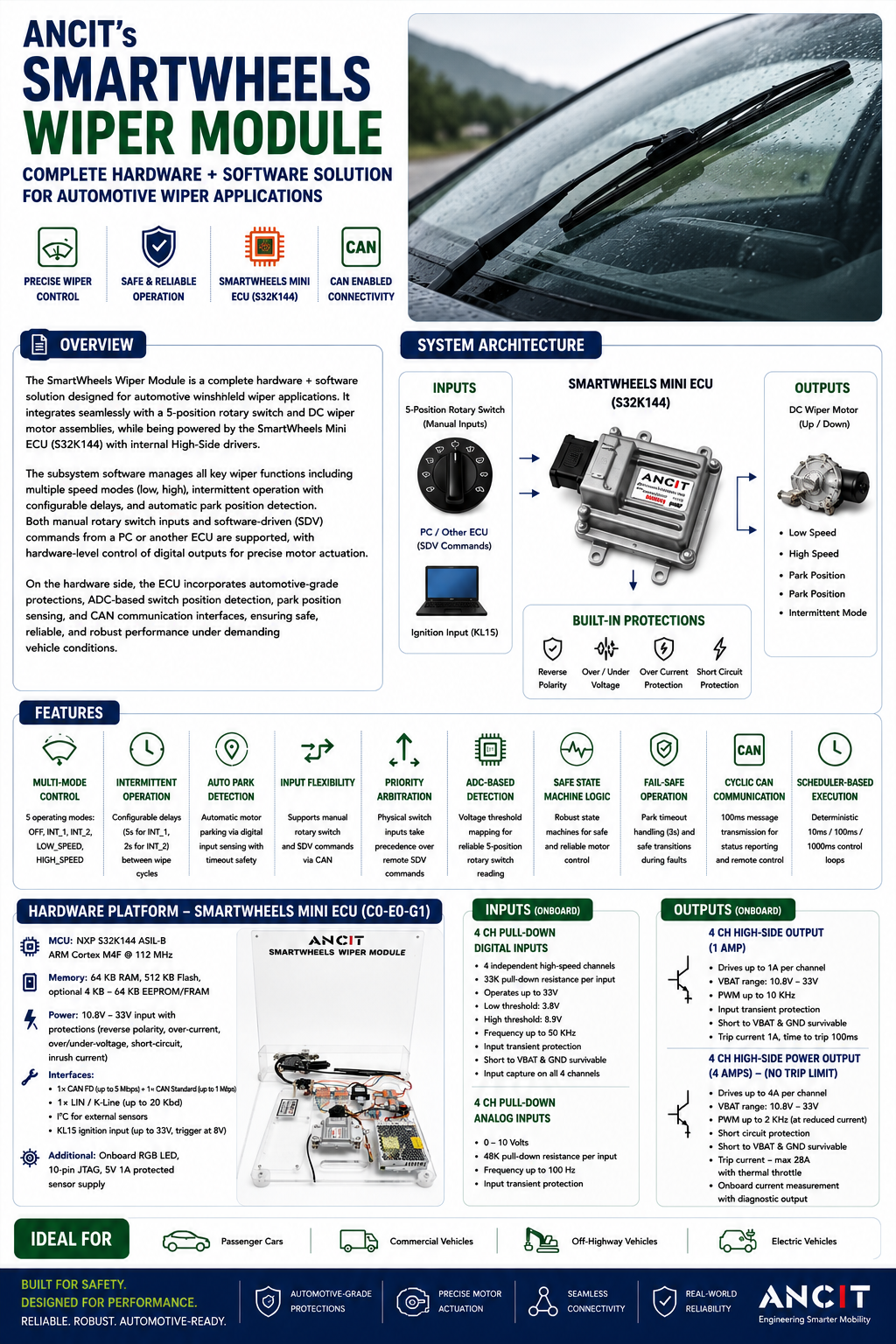

SmartWheels Wiper Control
Wiper Control

Complete wiper control module for windshield wiper systems with multiple speed settings and rain sensing capability.
Powered by ANCIT SmartWheels Mini ECU

  • Multi-speed wiper control (Low/High/Intermittent)
  • CAN bus status reporting
  • SDV commands with controlling the Wiper

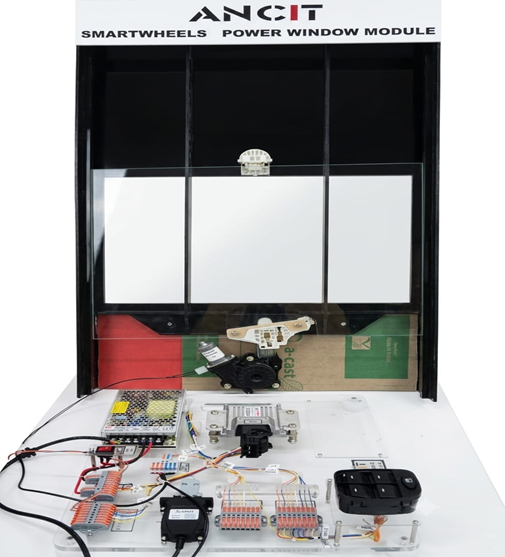

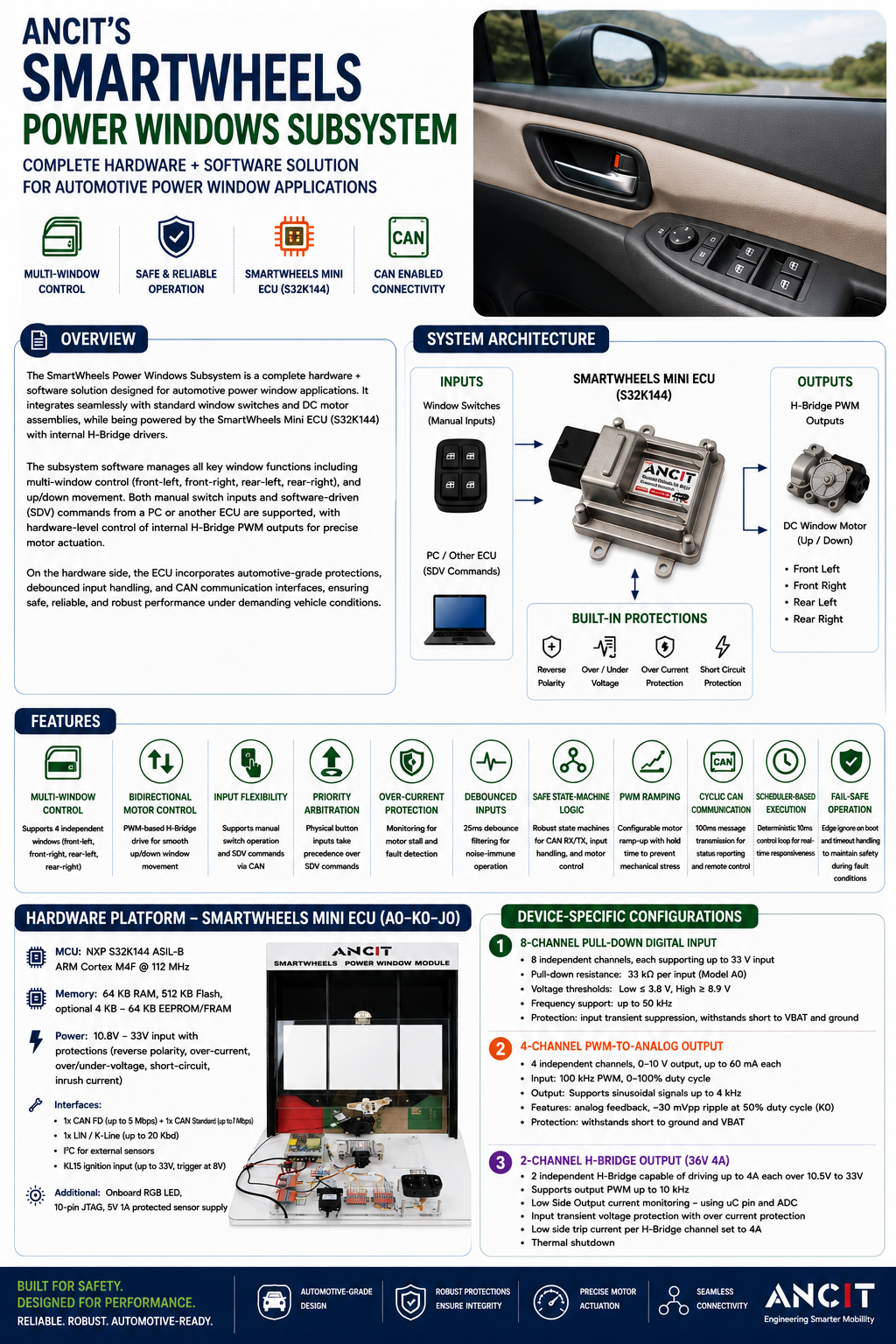

SmartWheels Power Windows
Power Windows

Smart power window controller with anti-pinch safety, one-touch operation, and centralized locking integration.
Powered by ANCIT SmartWheels Mini ECU

  • 4-window control (Driver/Passenger/Rear)
  • CAN bus integration status reporting
  • SDV commands with controlling the power windows
  • Overcurrent protection & motor diagnostics

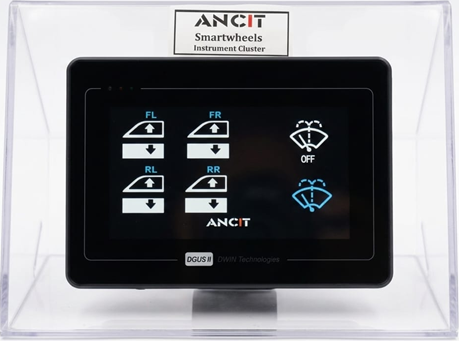

SmartWheels Digital Instrument Cluster
Digital Instrument Cluster

A fully configurable digital instrument cluster for EVs and ADAS platforms, displaying real-time vehicle data over CAN bus on a high-resolution screen.
Powered by DWIN Display & Dwin-o-code Tool by ANCIT

  • Real-time speed, RPM, battery & range display
  • CAN bus data acquisition from ECUs
  • Configurable warning indicators & alerts
  • SDV software-driven display updates
  • High-brightness display for daylight readability

Works with ANCIT Tools & Software

Also from ANCIT
CAR in a Box

Multi-ECU demo kit with dual CAN bus — all your subsystem ECUs networked in one portable case.

Explore Kit
SDV Centre of Excellence

Full university lab setup — subsystem kits are part of the Starter and Intermediate packages.

View Lab Setup
ANCIT Digital Cockpit

A complete multi-screen digital cockpit integrating the instrument cluster, infotainment, and ADAS displays.

See Cockpit

Transform your automotive development with ANCIT's plug-and-play subsystem kits.

Perfect for OEMs, Tier-1s, universities, and R&D labs.

Request a Quote

Full catalog covers all 8 subsystem kits — BBW, SBW, ETB, ORVM, Headlight, Wiper, Power Windows & Instrument Cluster
